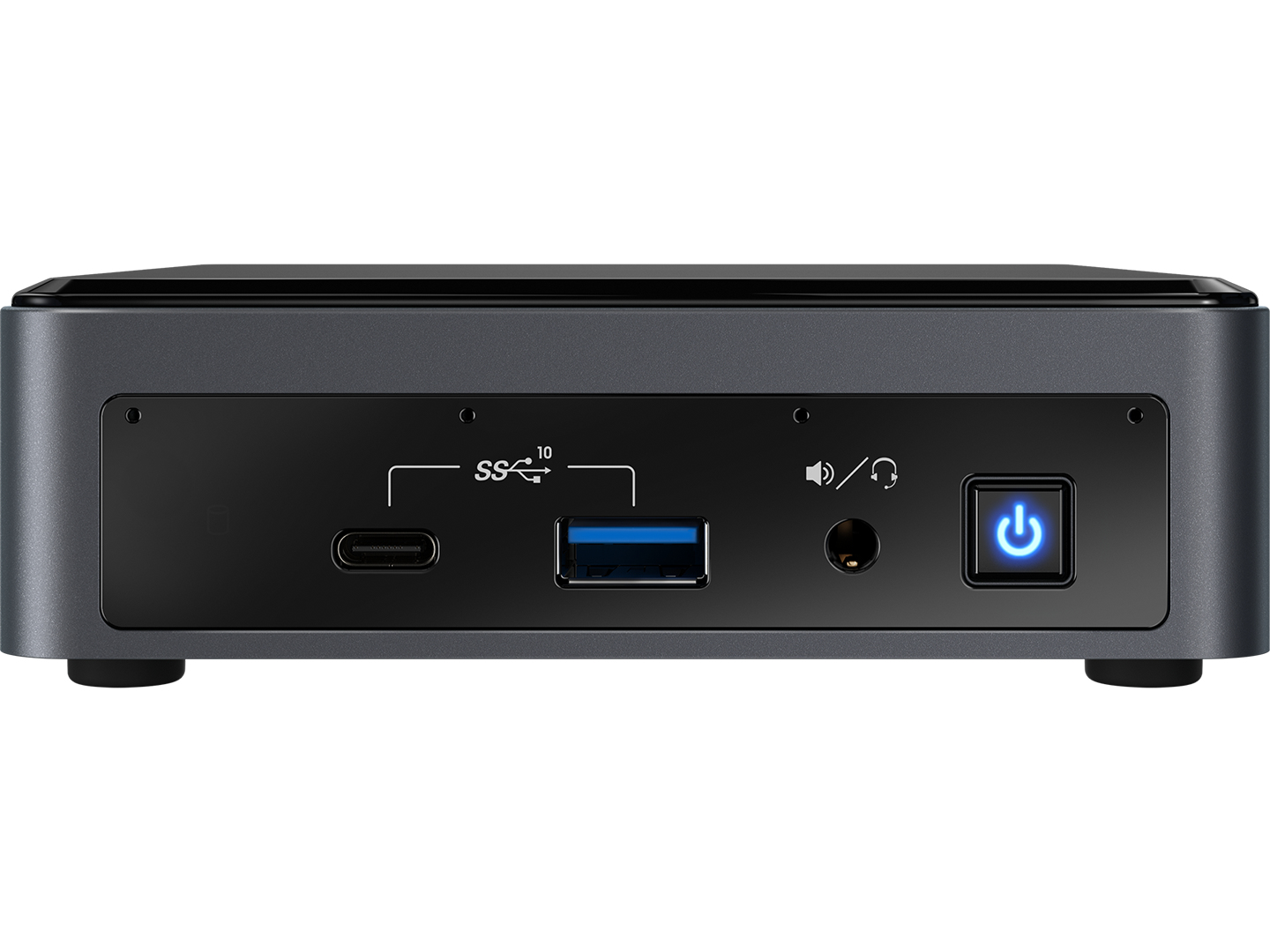

Intel NUC NUC10i7FNKN UCFF Black i7-10710U 1.1 GHz

Availability:

Stoc epuizat


Intel NUC NUC10i7FNKN. Chassis type: UCFF, Product type: Mini PC barebone. Supported memory types: DDR4-SDRAM, Number of memory slots: 2, Maximum internal memory: 64 GB. Supported storage drive types: SSD. Ethernet LAN (RJ-45) ports: 1. Wi-Fi standards: Wi-Fi 6 (802.11ax), Bluetooth version: 5.2. Cooling type: Active

3.217,18 lei (3.892,79 lei cu TVA)

Stoc epuizat

Compara

Intel® Optane™ Memory Supported
Intel® Optane™ memory is a revolutionary new class of non-volatile memory that sits in between system memory and storage to accelerate system performance and responsiveness. When combined with the Intel® Rapid Storage Technology Driver, it seamlessly manages multiple tiers of storage while presenting one virtual drive to the OS, ensuring that data frequently used resides on the fastest tier of storage. Intel® Optane™ memory requires specific hardware and software configuration. Visit www.intel.com/OptaneMemory for configuration requirements.

Intel® Virtualization Technology for Directed I/O (VT-d)
Intel® Virtualization Technology for Directed I/O (VT-d) continues from the existing support for IA-32 (VT-x) and Itanium® processor (VT-i) virtualization adding new support for I/O-device virtualization. Intel VT-d can help end users improve security and reliability of the systems and also improve performance of I/O devices in virtualized environments.

Intel® Rapid Storage Technology
Intel® Rapid Storage Technology provides protection, performance, and expandability for desktop and mobile platforms. Whether using one or multiple hard drives, users can take advantage of enhanced performance and lower power consumption. When using more than one drive the user can have additional protection against data loss in the event of hard drive failure. Successor to Intel® Matrix Storage Technology.

Intel® Virtualization Technology (VT-x)
Intel® Virtualization Technology (VT-x) allows one hardware platform to function as multiple “virtual” platforms. It offers improved manageability by limiting downtime and maintaining productivity by isolating computing activities into separate partitions.

Intel® Platform Trust Technology (Intel® PTT)
Intel® Platform Trust Technology (Intel® PTT) is a platform functionality for credential storage and key management used by Windows 8* and Windows® 10. Intel® PTT supports BitLocker* for hard drive encryption and supports all Microsoft requirements for firmware Trusted Platform Module (fTPM) 2.0.

SKU: BXNUC10I7FNKN2 Categorie:
Built-in processor

Yes

Width

117 mm

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

3

Motherboard form factor

UCFF

Top Wi-Fi standard

Wi-Fi 6 (802.11ax)

Built-in speaker(s)

No

Launch date

Q2'21

Power cord included

Yes

On-board graphics card

No

Power supply type

External AC adapter

Harmonized System (HS) code

84713000

PCI Express slots version

3.0

Memory slots type

SO-DIMM

Chassis type

UCFF

Supported storage drive types

SSD

Intel® vPro™ Platform Eligibility

No

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

2

Intel® High Definition Audio (Intel® HD Audio)

No

Additional headers

CEC, 2x USB2.0, FRONT_PANEL, RGB

Number of memory slots

2

Depth

112 mm

Trusted Platform Module (TPM)

No

Wi-Fi standards

Wi-Fi 6 (802.11ax)

Storage drive sizes supported

M.2

Processor manufacturer

Intel

On-board graphics card model

Intel® UHD Graphics

Product colour

Black

Number of SATA connectors

2

Audio output channels

7.1 channels

WLAN controller model

Intel Wi-Fi 6 AX201

Processor family

Intel® Core™ i7

Internal USB 2.0 ports quantity

2

Cooling type

Active

Height

38 mm

Embedded options available

No

SSD form factor

M.2

Number of DIMM slots

2

Discrete graphics card model

Not available

Maximum internal memory

64 GB

Number of storage drives supported

1

Number of displays supported

3

Ethernet LAN

Yes

HDMI ports quantity

1

Processor generation

10th gen Intel® Core™ i7

DC input voltage

19 V

On/off switch

Yes

Intel Rapid Storage Technology

Yes

Consumer infrared Rx sensor

Yes

Product type

Mini PC barebone

HDMI version

2.0b

Wi-Fi

Yes

Card reader integrated

Yes

Processor model

i7-10710U

Windows operating systems supported

Windows 10 x64

Intel® AES New Instructions (Intel® AES-NI)

Yes

Supported memory clock speeds

2666 MHz

Processor frequency

1.1 GHz

Supported memory types

DDR4-SDRAM

Compatible operating systems

Windows 11 (64-bit), Windows 10 (64-bit)

Intel Virtualization Technology for Directed I/O (VT-d)

Yes

Compatible memory cards

SD, SDHC, SDXC

Combo headphone/mic port

Yes

LAN controller

Intel® I219-V

Status

Launched

Ethernet LAN (RJ-45) ports

1

ARK ID

214614

Memory channels

Dual-channel

Intel VT-x with Extended Page Tables (EPT)

Yes

Processor cores

6

Bluetooth

Yes

Commodity Classification Automated Tracking System (CCATS)

G157815L2

Intel 64

Yes

Number of SATA III connectors

2

Processor threads

12

Memory bandwidth (max)

42.6 GB/s

Export Control Classification Number (ECCN)

5A992C

Bluetooth version

5.2

Idle States

Yes

Processor lithography

14 nm

Memory voltage

1.2 V

USB version

2.0/3.2 Gen 2 (3.1 Gen 2)

Processor boost frequency

4.7 GHz

USB ports quantity

7

Removable memory card slot

SDXC with UHS-II support

Enhanced Intel SpeedStep Technology

Yes

Intel Flex Memory Access

Yes

ECC

No

Thunderbolt 3 ports quantity

1

Processor cache

12 MB

Thermal Design Power (TDP)

25 W

Non-ECC

Yes

M.2 card slot (storage)

2242/2280

Intel Trusted Execution Technology

No

Memory bandwidth supported by processor (max)

42.6 GB/s

DC-in jack

Yes

Execute Disable Bit

Yes

CPU configuration (max)

1

Intel TSX-NI

No

Intel Stable Image Platform Program (SIPP)

No

Intel Clear Video Technology

Yes

Intel® Optane™ Memory Ready

Yes

Intel® Platform Trust Technology (Intel® PTT)

Yes

Intel Virtualization Technology (VT-x)

Yes
