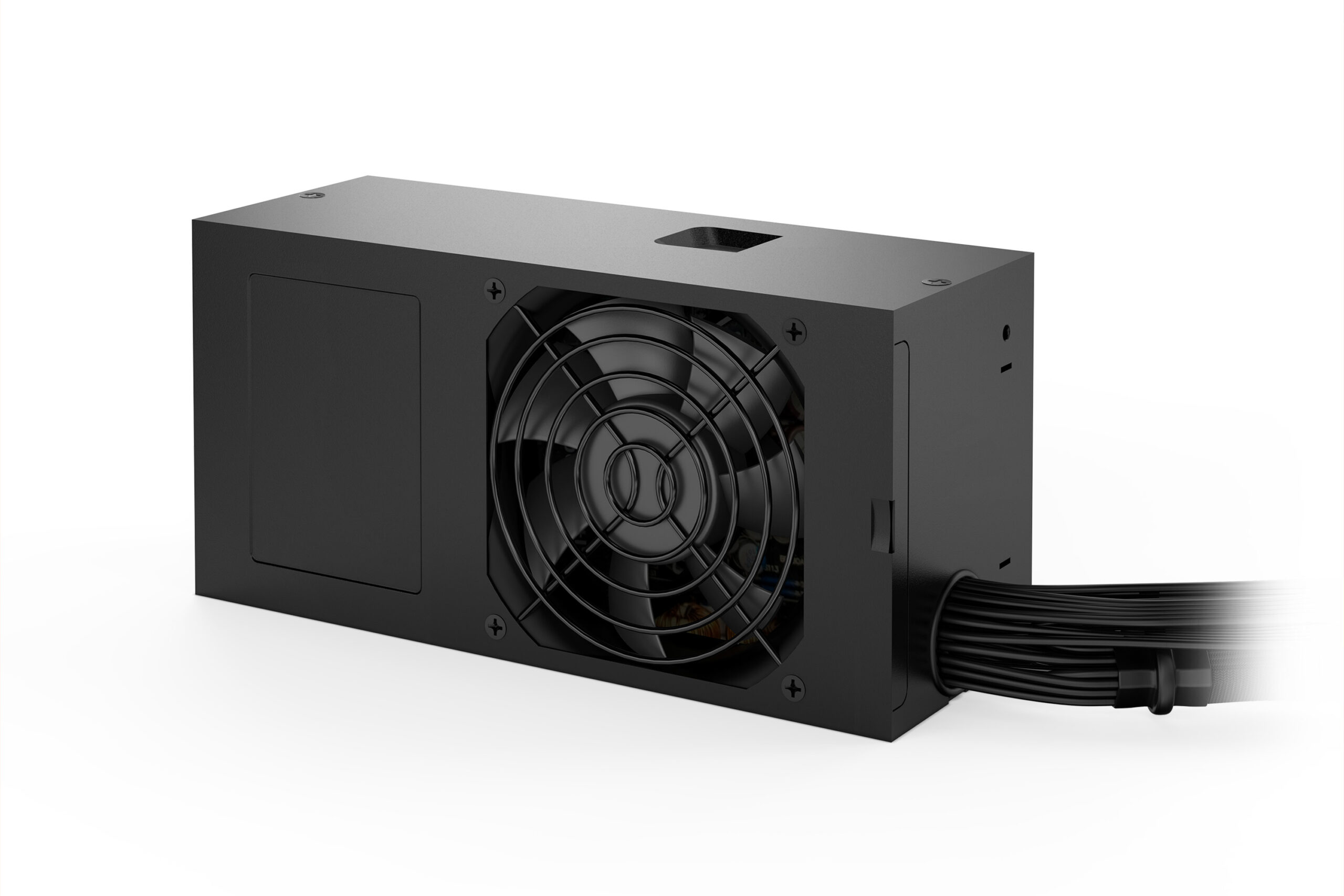

be quiet! TFX POWER 3 300W Gold power supply unit 20+4 pin ATX Black
be quiet! TFX POWER 3 300W Gold power supply unit 20+4 pin ATX Black - imagine 2
be quiet! TFX POWER 3 300W Gold power supply unit 20+4 pin ATX Black - imagine 3
be quiet! TFX POWER 3 300W Gold power supply unit 20+4 pin ATX Black - imagine 4
be quiet! TFX POWER 3 300W Gold power supply unit 20+4 pin ATX Black - imagine 5
be quiet! TFX POWER 3 300W Gold power supply unit 20+4 pin ATX Black - imagine 6

be quiet! TFX POWER 3 300W Gold power supply unit 20+4 pin ATX Black

Availability:

4 în stoc
Compara

be quiet! TFX POWER 3 300W Gold. Total power: 300 W, AC input voltage: 100 – 240 V, Peak power: 350 W. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 35 cm, SATA power cable length: 300,450,600 mm. Purpose: PC, Power supply unit (PSU) form factor: TFX, 80 PLUS certification: 80 PLUS Gold. Product colour: Black, Cooling type: Active, Fan diameter: 8 cm. Width: 85 mm, Depth: 175 mm, Height: 65 mm

356,02 lei (430,78 lei cu TVA)

4 în stoc

Compara

TFX Power 3 300W Gold, the advanced, high-efficiency be quiet! compact PSU gives you more for your mini or media PC. It supports the latest standards while providing solid voltages and enough power to support a PCIe graphics card. The combination of quiet operation and reliability make the TFX Power 3 300W Gold the perfect choice for PCs with TFX form factor.

Pdf File Link : https://objects.icecat.biz/objects/mmo_91303777_1618324212_4692_23255.pdf

SKU: BN323 Categorie:
Total power

300 W
Shipping (inner) case length

47.4 cm
Package width

159 mm
Sustainability compliance

Yes
80 PLUS certification

80 PLUS Gold
Width

85 mm
Product colour

Black
Motherboard power connector

20+4 pin ATX
Package depth

80 mm
Peak power

350 W
Cooling type

Active
Motherboard power cable length

35 cm
Depth

175 mm
Purpose

PC
Shipping (inner) case width

27.5 cm
Sustainability certificates

ENERGY STAR, ErP, RoHS, WEEE
Height

65 mm
Power supply unit (PSU) form factor

TFX
Shipping (inner) case height

19.5 cm
Fan diameter

8 cm
Number of SATA power connectors

3
AC input voltage

100 – 240 V
Package height

215 mm
Products per shipping (inner) case

6 pc(s)
SATA power cable length

300,450,600 mm
Package weight

1.43 kg
Number of fans

1 fan(s)
Weight

1.1 kg
AC input frequency

50 – 60 Hz
ATX version

2.52
Package type

Box
Peripheral (Molex) power connectors (4-pin)

2
Input current

4/2 A
EPS version

2.92
Shipping (inner) case gross weight

9.39 kg
Noise level

21.7 dB
Harmonized System (HS) code

84733020
Peripheral (Molex) power cable length

300,450 mm
Maximum input current (@110V)

4 A
Mean time between failures (MTBF)

100000 h
PCI Express power connectors (6+2 pin)

1
Maximum input current (@220V)

2 A
Safety

CE, CB, TÜV, CU
PCI Express power cable length

40 cm
Power factor

0.98
CPU P4 connector (4-pin)

1
Power Factor Correction (PFC) type

Active
Combined power (+3.3V)

103 W
CPU power cable length

35 cm
Floppy drive power connector

1
Combined power (+12V)

288 W
Combined power (+5V)

103 W
Floppy disk drive cable length

60 cm
Cabling type

Non-Modular
Max output current (+3.3V)

18 A
Max output current (+12V1)

13 A
Max output current (+12V2)

13 A
Max output current (+5V)

18 A
Max output current (-12V)

0.3 A
Max output current (+5Vsb)

3 A
Hold time

29 ms
Efficiency

90.6%
Power protection features

Over current, Over power, Over voltage, Short circuit, Under voltage

Based on 0 reviews

0.0 overall
0
0
0
0
0

Be the first to review “be quiet! TFX POWER 3 300W Gold power supply unit 20+4 pin ATX Black”

There are no reviews yet.
