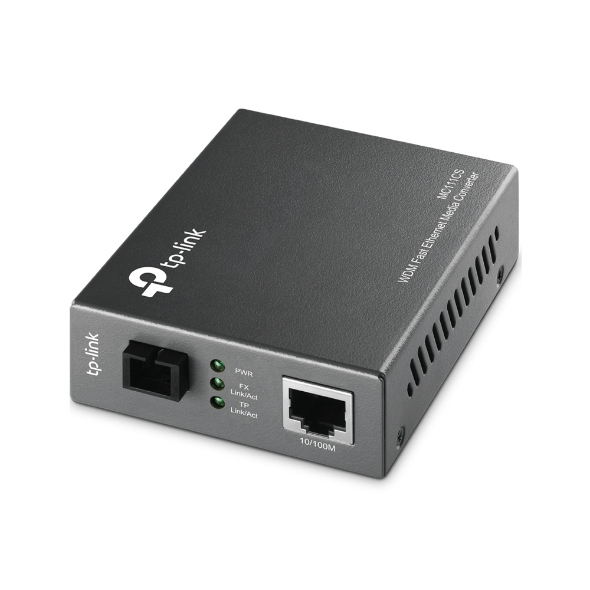

TP-Link MC111CS network media converter 100 Mbit/s Single-mode Black
22 în stoc
TP-Link MC111CS. Maximum data transfer rate: 100 Mbit/s, Networking standards: IEEE 802.3, IEEE 802.3u, Ethernet LAN data rates: 10,100 Mbit/s. Fiber optic connector: SC, Connectivity technology: Wired. Maximum transfer distance: 20000 m, Fiber mode structure: Single-mode. Product colour: Black. Power consumption (max): 2.49 W
107,58 lei (130,17 lei cu TVA)
22 în stoc
ComparaThe MC111CS is a media converter designed to convert 100BASE-FX fiber to 10/100Base-TX copper media or vice versa. Adopting WDM technology, MC111CS takes only one fiber cable to transmit and receive data, which will half cable cost for you. Designed with IEEE 802.3u 100Base-TX and 100Base-FX standards, the MC111CS is designed for use with single-mode fiber cable utilizing the SC-Type connector. The MC111CS supports longwave (LX) laser specification at a full wire speed forwarding rate. It works at 1550nm on transferring data and at 1310nm on receiving data. So the other end device to cooperate with the MC111CS should work at 1310nm on transferring data and at 1550nm on receiving data. Another TP-LINK´s media converter MC112CS is just one of the examples to cooperate with MC111CS. Auto MDI/MDI-X for TX port, Auto negotiation of duplex mode on TX port, and front panel status LEDs. The MC111CS will transmit at extended fiber optic distances utilizing single-mode fiber up to 20 kilometers(12.5 miles).
Pdf File Link : https://objects.icecat.biz/objects/mmo_79344047_1589884086_3912_30764.pdf
| Maximum data transfer rate | 100 Mbit/s |
|---|---|
| Maximum transfer distance | 20000 m |
| Sustainability certificates | RoHS |
| Manual | Yes |
| Operating temperature (T-T) | 0 – 40 °C |
| Width | 95 mm |
| Power consumption (max) | 2.49 W |
| Internal | No |
| Connectivity technology | Wired |
| Harmonized System (HS) code | 85176990 |
| Storage temperature (T-T) | -40 – 70 °C |
| LED indicators | Yes |
| Networking standards | IEEE 802.3, IEEE 802.3u |
| Wavelength-division multiplexing (WDM) | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Depth | 73 mm |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Operating relative humidity (H-H) | 10 – 90% |
| Fiber ports quantity | 1 |
| Height | 27 mm |
| Product colour | Black |
| Fiber mode structure | Single-mode |
| Fiber optic connector | SC |
| Storage relative humidity (H-H) | 5 – 90% |
| Auto MDI/MDI-X | Yes |
| Duplex system | Full, Half |
| Cable types supported | Cat3, Cat4, Cat5, Cat5e |
