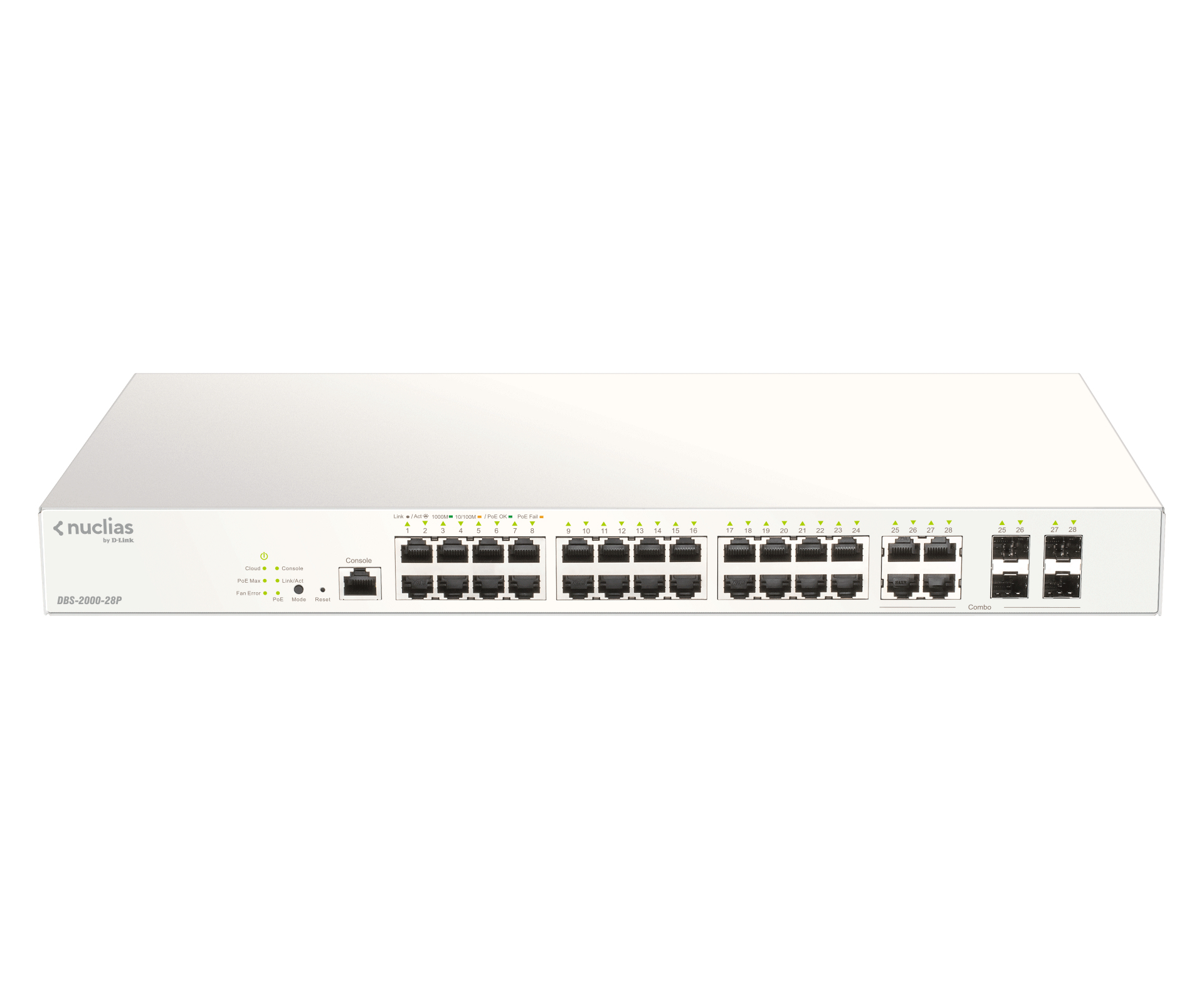

D-Link DBS-2000-28P network switch Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Grey

Availability:

Stoc epuizat


D-Link DBS-2000-28P. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 24. Switching capacity: 56 Gbit/s. Networking standards: IEEE 802.3ad, IEEE 802.3at. Power over Ethernet (PoE). Rack mounting

2.621,28 lei (3.171,75 lei cu TVA)

Stoc epuizat

Compara

Cloud Networking, Refreshed
The DBS-2000 series of switches is part of the Nuclias Cloud solution – D-Link’s complete Cloud-Managed Networking solution for Small-to-Medium Businesses (SMBs), designed to make the ownership and administration of your IT infrastructure as simple and hassle-free as possible.

Management Over the Cloud
DBS-2000 is a series of Smart Managed Switches, manageable via the Nuclias Cloud Web Portal through any compatible online PC or Tablet. Connectivity with the Nuclias Cloud platform is guaranteed, with a 99.9% Service-Level-Agreement (SLA), and operation will continue even if the Cloud connection fails.

Easy Troubleshooting
The DBS-2000 Series features Cable Diagnostics and Per Port Traffic Packet Counters to help network admins find & solve network problems. Cable Diagnostics enables quick examination of cable quality, recognition of cable type, and detection of cable errors, with the Per-Port Traffic Packet Counter helping to further isolate problems.

Advanced Security Features
The DBS-2000 series utilizes the Nuclias Cloud Web Portal interface, giving administrators an easy way to manage Layer-2 features, such as VLANs, Spanning Tree Protocol (STP), and 802.3ad Link Aggregation (static). With powerful security features, including IGMP snooping, Static MAC, and end-to-end encryption (WPA/WPA2/WPA3), these Cloud switches are a versatile solution for deployments that require easy configuration, without added complexities.

Full PoE Support
Select models in the DBS-2000 Series support Power over Ethernet (PoE) for copper access ports. Power over Ethernet greatly simplifies the installation of PoE-enabled devices such as VoIP phones and IP cameras in remote locations with no immediate access to a power outlet.

Pdf File Link : https://objects.icecat.biz/objects/mmo_73045544_1584520904_0743_30332.pdf

SKU: DBS-2000-28P Categorie:
Switch type

Managed

Built-in processor

Yes

IGMP snooping

Yes

Basic switching RJ-45 Ethernet ports quantity

24

Networking standards

IEEE 802.3ad, IEEE 802.3at

Switching capacity

56 Gbit/s

Rack mounting

Yes

Harmonized System (HS) code

85176990

Shipping (inner) case height

39.3 cm

AC input voltage

100 – 240 V

Power over Ethernet (PoE)

Yes

Operating temperature (T-T)

-5 – 50 °C

Width

440 mm

Package width

365 mm

Forwarding rate

41.7 Mpps

Processor frequency

500 MHz

Product colour

Grey

Security algorithms

WPA, WPA2

Switch layer

L2

Package depth

521 mm

Storage temperature (T-T)

-20 – 70 °C

Depth

250 mm

Basic switching RJ-45 Ethernet ports type

Gigabit Ethernet (10/100/1000)

10G support

No

Power consumption (max)

263.9 W

Power over Ethernet plus (PoE+) ports quantity

24

Shipping (inner) case width

29.5 cm

Shipping (inner) case length

53.9 cm

Operating relative humidity (H-H)

0 – 95%

Packet buffer memory

4.1 MB

Combo SFP ports quantity

4

Power over Ethernet (PoE) power per port

30 W

Height

44 mm

Copper ethernet cabling technology

10BASE-T, 100BASE-TX, 1000BASE-T

LED indicators

Yes

Package height

92 mm

Memory type

DDR3-SDRAM

Package weight

5.04 kg

Weight

3.75 kg

Shipping (inner) case net weight

15.1 kg

Storage relative humidity (H-H)

0 – 95%

Total Power over Ethernet (PoE) budget

193 W

Internal memory

256 MB

Products per shipping (inner) case

3 pc(s)

Flash memory

32 MB

Auto MDI/MDI-X

Yes

Operating altitude

0 – 1500 m

Spanning tree protocol

Yes

Heat dissipation

900.36 BTU/h

Pallet gross weight (air)

403.5 kg

Mean time between failures (MTBF)

469262 h

Master (outer) cases per pallet (air)

24 pc(s)

Products per pallet (air)

72 pc(s)

Pallet gross length

110 cm

Pallet gross width

120 cm

Pallet height (air)

131.4 cm

Pallet gross weight (sea)

660 kg

Master (outer) cases per pallet (sea)

40 pc(s)

Products per pallet (sea)

120 pc(s)

Pallet height (sea)

2.1 m

Shipping (inner) case gross weight

16 kg
