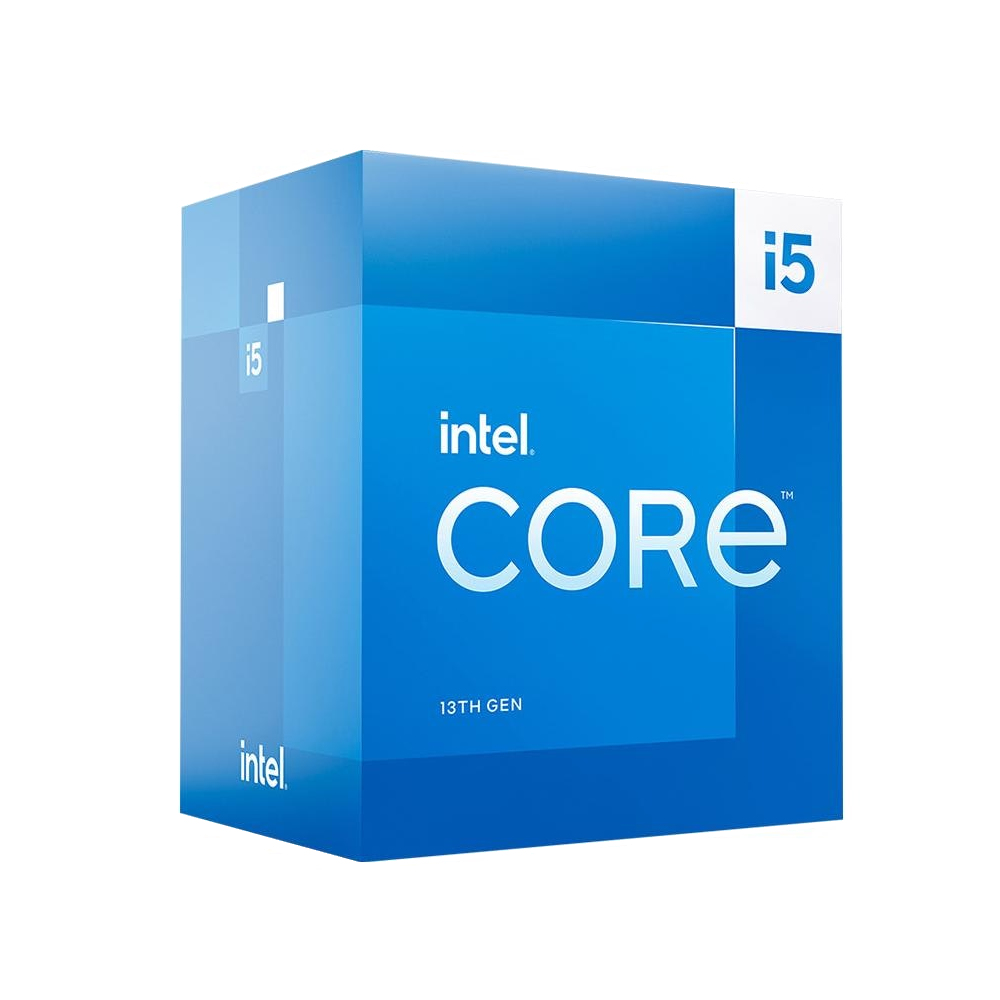

Intel Core i5-13400F processor 20 MB Smart Cache Box

Availability:

Stoc epuizat


Intel Core i5-13400F. Processor family: Intel® Core™ i5, Processor socket: LGA 1700, Processor manufacturer: Intel. Memory channels: Dual-channel, Maximum internal memory supported by processor: 192 GB, Memory types supported by processor: DDR4-SDRAM, DDR5-SDRAM. Market segment: Desktop, Use conditions: PC/Client/Tablet, PCI Express slots version: 4.0, 5.0. Processor package size: 45 x 37.5 mm. L2 cache: 9728 KB, Maximum internal memory: 192 GB

1.104,48 lei (1.336,42 lei cu TVA)

Stoc epuizat

Compara

Intel® Gaussian & Neural Accelerator
Intel® Gaussian & Neural Accelerator (GNA) is an ultra-low power accelerator block designed to run audio and speed-centric AI workloads. Intel® GNA is designed to run audio based neural networks at ultra-low power, while simultaneously relieving the CPU of this workload.

Intel® Deep Learning Boost (Intel® DL Boost)
A new set of embedded processor technologies designed to accelerate AI deep learning use cases. It extends Intel AVX-512 with a new Vector Neural Network Instruction (VNNI) that significantly increases deep learning inference performance over previous generations.

Intel® Speed Shift Technology
Intel® Speed Shift Technology uses hardware-controlled P-states to deliver dramatically quicker responsiveness with single-threaded, transient (short duration) workloads, such as web browsing, by allowing the processor to more quickly select its best operating frequency and voltage for optimal performance and power efficiency.

Intel® Turbo Boost Technology
Intel® Turbo Boost Technology dynamically increases the processor’s frequency as needed by taking advantage of thermal and power headroom to give you a burst of speed when you need it, and increased energy efficiency when you don’t.

Intel® 64
Intel® 64 architecture delivers 64-bit computing on server, workstation, desktop and mobile platforms when combined with supporting software. Intel 64 architecture improves performance by allowing systems to address more than 4 GB of both virtual and physical memory.

Idle States
Idle States (C-states) are used to save power when the processor is idle. C0 is the operational state, meaning that the CPU is doing useful work. C1 is the first idle state, C2 the second, and so on, where more power saving actions are taken for numerically higher C-states.

Thermal Monitoring Technologies
Thermal Monitoring Technologies protect the processor package and the system from thermal failure through several thermal management features. An on-die Digital Thermal Sensor (DTS) detects the core’s temperature, and the thermal management features reduce package power consumption and thereby temperature when required in order to remain within normal operating limits.

Intel® Volume Management Device (VMD)
Intel® Volume Management Device (VMD) provides a common, robust method of hot plug and LED management for NVMe-based solid state drives.

SKU: BX8071513400F Categorie:
Processor manufacturer

Intel

Tjunction

100 °C

Maximum internal memory supported by processor

192 GB

Execute Disable Bit

Yes

Intel® Hyper Threading Technology (Intel® HT Technology)

Yes

On-board graphics card

No

Harmonized System (HS) code

8542310001

Launch date

Q1'23

Processor package size

45 x 37.5 mm

L2 cache

9728 KB

Intel® Turbo Boost Technology

2.0

Processor generation

13th gen Intel® Core™ i5

Idle States

Yes

Discrete graphics card

No

Memory types supported by processor

DDR4-SDRAM, DDR5-SDRAM

Maximum internal memory

192 GB

Memory channels

Dual-channel

On-board graphics card model

Not available

Thermal Monitoring Technologies

Yes

Intel® AES New Instructions (Intel® AES-NI)

Yes

Processor model

i5-13400F

Enhanced Intel SpeedStep Technology

Yes

Non-ECC

Yes

Processor family

Intel® Core™ i5

Market segment

Desktop

Discrete graphics card model

Not available

Processor cores

10

Memory bandwidth (max)

76.8 GB/s

Use conditions

PC/Client/Tablet

Intel® Speed Shift Technology

Yes

Maximum number of PCI Express lanes

20

Intel® Gaussian & Neural Accelerator (Intel® GNA) 3.0

Yes

Processor socket

LGA 1700

Intel® Control-flow Enforcement Technology (CET)

Yes

Processor threads

16

PCI Express slots version

4.0, 5.0

PCI Express configurations

1×16+1×4, 2×8+1×4

Intel® Thread Director

Yes

Processor operating modes

64-bit

Supported instruction sets

AVX 2.0, SSE4.1, SSE4.2

Performance cores

6

Intel VT-x with Extended Page Tables (EPT)

Yes

Efficient cores

4

Intel® Secure Key

Yes

Scalability

1S

CPU configuration (max)

1

Intel® OS Guard

Yes

Processor boost frequency

4.6 GHz

Embedded options available

No

Performance-core boost frequency

4.6 GHz

Intel 64

Yes

Intel Virtualization Technology (VT-x)

Yes

Direct Media Interface (DMI) Revision

4.0

Performance-core base frequency

2.5 GHz

Efficient-core boost frequency

3.3 GHz

Export Control Classification Number (ECCN)

5A992C

Intel Virtualization Technology for Directed I/O (VT-d)

Yes

Commodity Classification Automated Tracking System (CCATS)

740.17B1

Efficient-core base frequency

1.8 GHz

Intel Turbo Boost Max Technology 3.0

No

Intel® Boot Guard

Yes

Processor cache

20 MB

Intel® Deep Learning Boost (Intel® DL Boost)

Yes

Processor cache type

Smart Cache

Box

Yes

Intel® Volume Management Device (VMD)

Yes

Mode-based Execute Control (MBE)

Yes

Cooler included

Yes

Intel® Standard Manageability (ISM)

Yes

Processor base power

65 W

Maximum turbo power

148 W

Maximum number of DMI lanes

8

Processor codename

Raptor Lake

Processor ARK ID

230501
