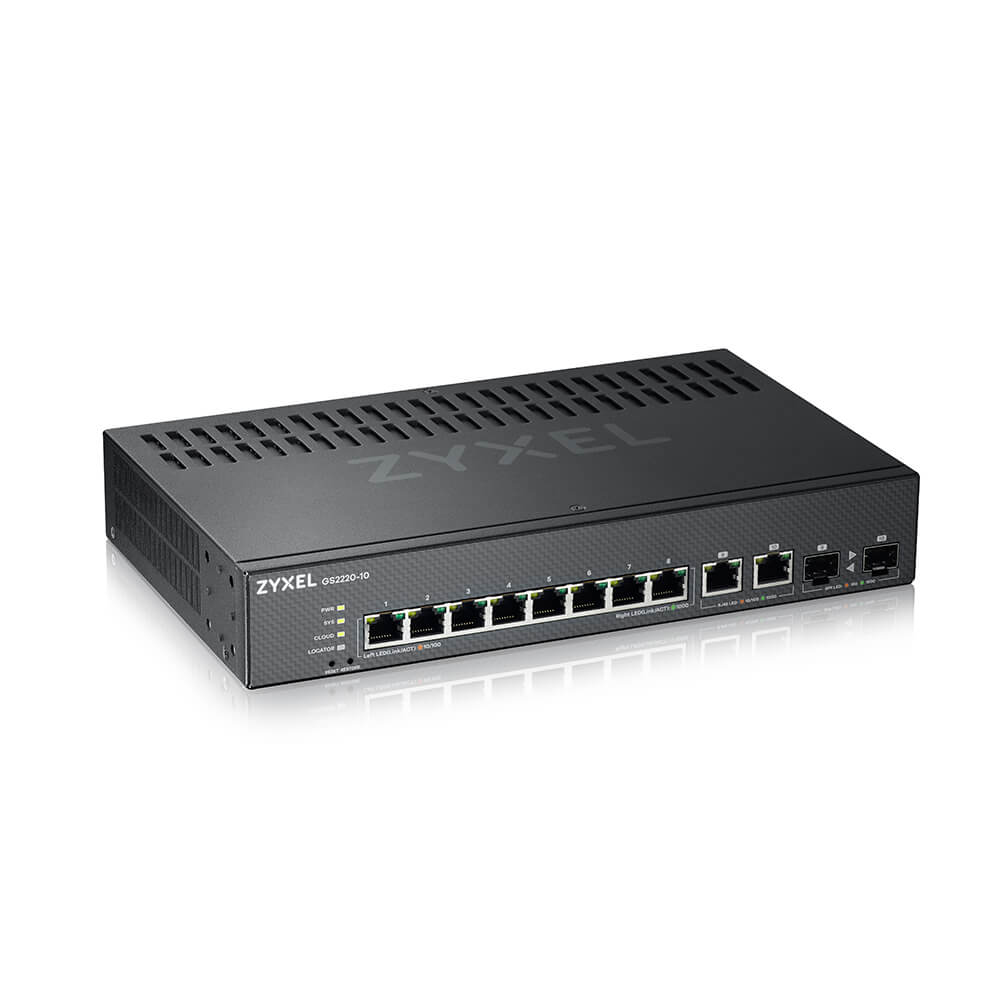

Zyxel GS2220-10-EU0101F network switch Managed L2 Gigabit Ethernet (10/100/1000) Black
Zyxel GS2220-10-EU0101F network switch Managed L2 Gigabit Ethernet (10/100/1000) Black - imagine 2
Zyxel GS2220-10-EU0101F network switch Managed L2 Gigabit Ethernet (10/100/1000) Black - imagine 3
Zyxel GS2220-10-EU0101F network switch Managed L2 Gigabit Ethernet (10/100/1000) Black - imagine 4
Zyxel GS2220-10-EU0101F network switch Managed L2 Gigabit Ethernet (10/100/1000) Black - imagine 5

Zyxel GS2220-10-EU0101F network switch Managed L2 Gigabit Ethernet (10/100/1000) Black

Availability:

3 în stoc
Compara

Zyxel GS2220-10-EU0101F. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 10. MAC address table: 16000 entries, Switching capacity: 20 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE…. Rack mounting

796,04 lei (963,21 lei cu TVA)

3 în stoc

Compara

Designed for converged networks
GS2220 Series
Zyxel’s new generation of Layer 2 Managed Switch GS2220 Series are fully featured Layer 2 Gigabit access switches designed to meet converged data, video and voice networking needs. This latest series’ eye-catching new look comes in 10-, 28-, and 50-port models with a combination of PoE and non-PoE. On top of the fully manageable L2 features set comes with the state-ofart Zyxel NebulaFlex Pro technology for cloud manageability.

Industry first tri-mode switch.
The GS2220 Series is the first managed hybrid switch with Nebula Cloud management, Standalone management, and SNMP.

Powerful L2 features.
The GS2220 Series has a rich Layer 2 feature set that can shape the traffic for diverse VoIP, video conference and IPTV deployments. Advanced traffic control features of the GS2220 Series such as L2 multicast, IGMP snooping, MVR provide businesses greater agility and more effective traffic management for the converged applications of today.

Manage it your way!
The support of Zyxel NebulaFlex Pro allows you to easily switch standalone management and intuitive Nebula cloud management platform with 1-YEAR Pro Pack bundled anytime with just a few simple clicks.

Experience whisper-silent operations.
This Series includes both fan-less and built-in smart fan models. The smart fan is designed to automatically adjust speed based on device temperature. You can barely hear the sound while the switch is operating.

Flexible port combination.
The GS2220 Series includes copper ports and combo ports, 50 and 50HP models even come with additional dedicated SFP ports for uplinks. This flexible port combination can fit in every Layer 2 switching applications easily.

Plug into the power of the Zyxel One Network.
The Zyxel One Network (ZON) Utility is a unified installation tool to discover and configure Zyxel Switches, WLAN and Gateways in the standalone network. Users can easily maintain the network in a single platform. ZON Utility is a free of charge tool which has been downloaded by over 32,000 users to date.

Pdf File Link : https://objects.icecat.biz/objects/mmo_80472216_1596226023_577_20940.pdf

SKU: GS2220-10-EU0101F Categorie:
Switch type

Managed
Rack mounting

Yes
Basic switching RJ-45 Ethernet ports quantity

10
Networking standards

IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Harmonized System (HS) code

85176990
DHCP features

DHCP client, DHCP relay, DHCP snooping, DHCPv6 client, DHCPv6 relay
Multicast support

Yes
Switching capacity

20 Gbit/s
Internal memory

256 MB
Power over Ethernet (PoE)

No
Operating temperature (T-T)

0 – 50 °C
Width

267 mm
Cables included

AC
AC input voltage

100 – 240 V
Product colour

Black
Package width

375 mm
Forwarding rate

15 Mpps
Switch layer

L2
10G support

No
Depth

162 mm
Basic switching RJ-45 Ethernet ports type

Gigabit Ethernet (10/100/1000)
AC input frequency

50 – 60 Hz
Storage temperature (T-T)

-40 – 70 °C
Access Control List (ACL)

Yes
Flash memory

32 MB
Height

44 mm
Operating relative humidity (H-H)

10 – 95%
MAC address table

16000 entries
Quality of Service (QoS) support

Yes
Firmware upgradeable

Yes
Certification

LVD, BSMI
FCC 15 A, CE EMC A, BSMI ENC
RoHS A
Package depth

235 mm
Power consumption (max)

11 W
Copper ethernet cabling technology

10BASE-TX, 1000BASE-T
IGMP snooping

Yes
Flow control support

Yes
Packet buffer memory

1.5 MB
Storage relative humidity (H-H)

10 – 95%
Fanless

Yes
Weight

1.3 kg
Package height

61 mm
Security algorithms

SNMP, SNMPv2, SNMPv3, SSH-2, SSL/TLS
Web-based management

Yes
Mean time between failures (MTBF)

1213492 h
MAC address filtering

Yes
Heat dissipation

37.51 BTU/h
Configuring Location Settings (CLI)

Yes
Link aggregation

Yes
Package weight

2.21 kg
System event log

Yes
Broadcast storm control

Yes
Authentication

Guest VLAN, MAC-based authentication
Rate limiting

Yes
Authentication type

IEEE 802.1x, RADIUS
Spanning tree protocol

Yes
VLAN support

Yes
Virtual LAN features

Port-based VLAN, Private VLAN, Protocol-based VLAN, Voice VLAN
