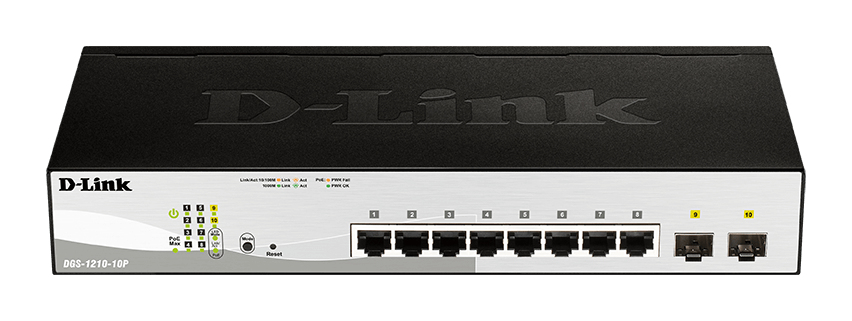

D-Link DGS-1210-10P network switch Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Black

Availability:

1 în stoc


D-Link DGS-1210-10P. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8. Full duplex. MAC address table: 8000 entries, Switching capacity: 20 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x. Power connector: DC-in jack. Power over Ethernet (PoE). Rack mounting, Form factor: 1U

650,65 lei (787,29 lei cu TVA)

1 în stoc

Compara

Smart Managed with a Plus
With increased PoE output, advanced Layer 2 management features, and Layer 3 static routing , D‑Link’s DGS‑1210 Smart+ Managed Gigabit Switches provide a cost‑efficient and flexible solution for expanding any business network.

Advanced Layer 2 Management with Layer 3 Static Routing
The DGS-1210 Smart+ family has advanced network management options, accessible via Compact CLI or the Web-based UI, that equip your business with network capabilities such as VLANs, multiple spanning tree protocol (MSTP), link aggregation (LACP), static routing, dual software images, and dual configuration files.

With powerful security features like IGMP snooping, access control lists, port security, and the unique D-Link Safeguard Engine that protects your network against malicious denial-of-service attacks from broadcast, multicast and unicast flooding, the DGS-1210 Smart+ family is a versatile solution for access-edge network environments.

Fibre Uplinks
Use fibre uplinks to connect across longer distances, like factory lines and university campuses, using lightweight, secure, and energy‑efficient fibre optic cabling that’s immune to interference and which has access to higher throughput to protect the future demands of your business network.

PoE and PoE+, with budgets up to 370W
The DGS-1210 Smart+ Series includes a range of high power budget PoE-enabled switches for business looking to power larger deployments of VoIP phones, wireless access points or network cameras.

Free Network Design and Management Software
D-Link’s free Network Assistant (DNA) displays all connected devices and speeds up the first time configuration. The free D-View 7 Network Management System comes with a license for 25 nodes and 2 probes and full access to the management tools. Optional upgrade licenses allow you to broaden your network and analysis.

Smart Energy‑Saving Design
D-Link Green technology enables the DGS-1210 Smart+ series to save power without any sacrifices. The majority of the family utilises a fanless design, otherwise they feature a smart fan that powers on above a certain temperature. All come with advanced silicon technology which saves up to 73% of energy compared to a normal switch.

Surveillance Mode
Select Surveillance Mode in the Web UI to take advantage of easy‑to‑use surveillance features which enable you to manage your surveillance network effortlessly. It automatically detects your security devices and segments them into a dedicated Auto Surveillance VLAN to handle video surveillance traffic securely and efficiently.

SKU: DGS-1210-10P Categorie:
Switch type

Managed

Rack mounting

Yes

Switching capacity

20 Gbit/s

Basic switching RJ-45 Ethernet ports quantity

8

Networking standards

IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x

Harmonized System (HS) code

85176990

Access Control List (ACL)

Yes

Multicast support

Yes

Mean time between failures (MTBF)

729258 h

Shipping (inner) case height

31.7 cm

Power consumption (max)

80.6 W

Power over Ethernet (PoE)

Yes

Operating temperature (T-T)

-5 – 50 °C

Width

280 mm

Package width

288 mm

Stackable

Yes

Package depth

331 mm

Forwarding rate

14.88 Mpps

Basic switching RJ-45 Ethernet ports type

Gigabit Ethernet (10/100/1000)

10G support

No

Shipping (inner) case width

34.6 cm

Depth

126 mm

Switch layer

L2

Storage temperature (T-T)

-20 – 70 °C

Power over Ethernet (PoE) ports quantity

8

MAC address filtering

Yes

MAC address table

8000 entries

Shipping (inner) case length

38.2 cm

Gigabit Ethernet (copper) ports quantity

8

Height

44 mm

Form factor

1U

Quality of Service (QoS) support

Yes

Package height

72 mm

Power over Ethernet plus (PoE+) ports quantity

2

Copper ethernet cabling technology

10BASE-T, 100BASE-T, 1000BASE-T

Operating relative humidity (H-H)

0 – 95%

Total Power over Ethernet (PoE) budget

78 W

Weight

950 g

Package weight

2.21 kg

Store-and-forward

Yes

Web-based management

Yes

Product colour

Black

Storage relative humidity (H-H)

0 – 95%

Shipping (inner) case net weight

11.1 kg

Cable types supported

Cat5, Cat5e

SFP module slots quantity

2

Power connector

DC-in jack

LED indicators

Yes

Packet buffer memory

0.512 MB

Products per shipping (inner) case

5 pc(s)

Port mirroring

Yes

Heat dissipation

373.96 BTU/h

Pallet gross weight (air)

449.5 kg

Certification

EMI: CE Class A, VCCI Class A, FCC Class A, BSMI, CCC

Full duplex

Yes

Flow control support

Yes

Master (outer) cases per pallet (air)

36 pc(s)

Products per pallet (air)

180 pc(s)

Pallet gross length

110 cm

Auto MDI/MDI-X

Yes

Pallet gross width

120 cm

Pallet height (air)

140.3 cm

Pallet gross weight (sea)

662 kg

Master (outer) cases per pallet (sea)

54 pc(s)

Products per pallet (sea)

270 pc(s)

Pallet height (sea)

2.04 m

Shipping (inner) case gross weight

11.8 kg
