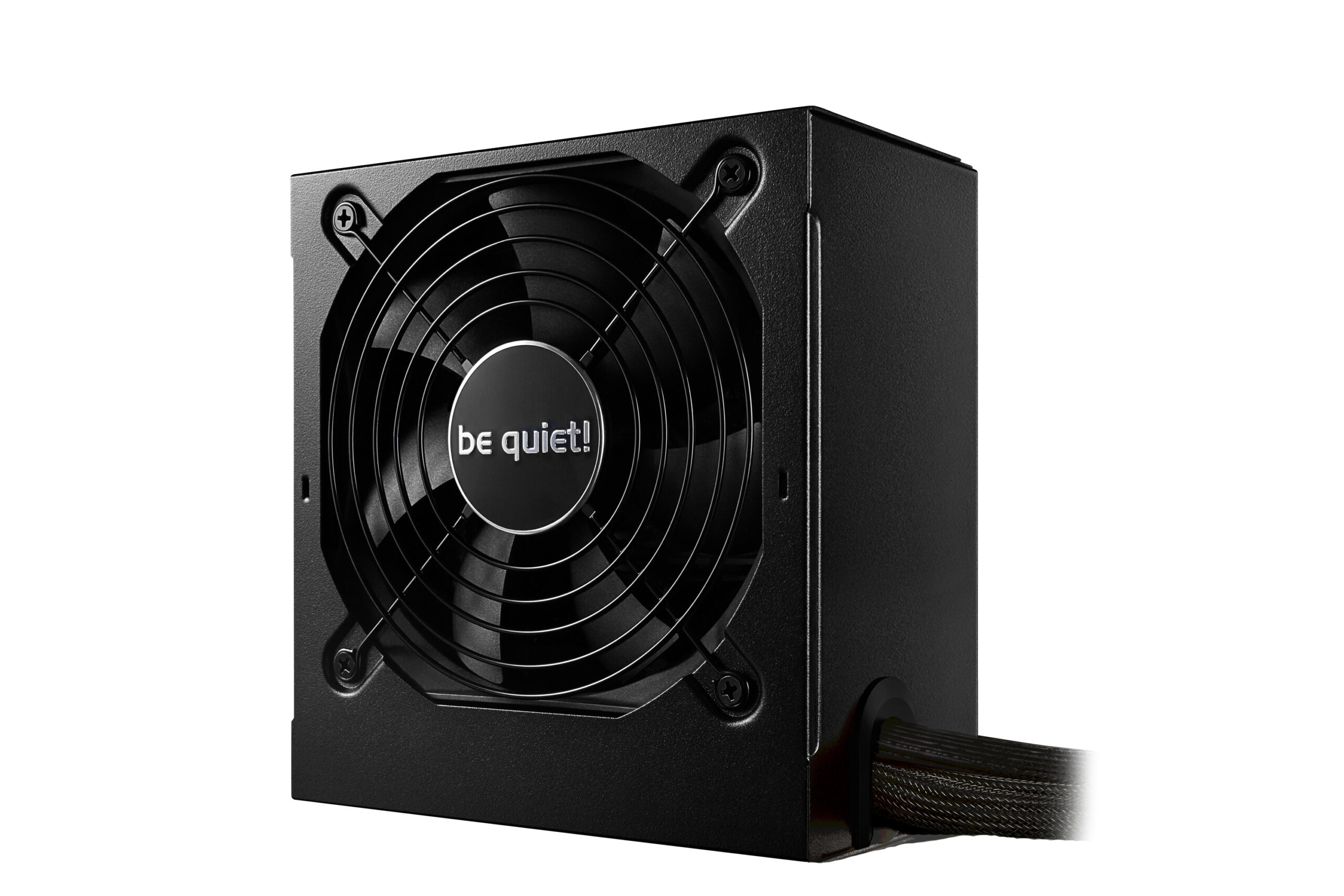

be quiet! System Power 10 power supply unit 650 W 20+4 pin ATX ATX Black
Stoc epuizat
be quiet! System Power 10. Total power: 650 W, AC input voltage: 200 – 240 V, AC input frequency: 50 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 55 cm, SATA power cable length: 450,550,570,670,690,790 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Bronze. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Width: 140 mm, Depth: 86 mm, Height: 150 mm
288,52 lei (349,11 lei cu TVA)
Stoc epuizat
ComparaPROVEN RELIABILITY, QUIET OPERATION
System Power 10 650W has been built with price-conscious users in mind that do not want to dispense on reliability and quietness. Elaborated features such as a temperature-controlled fan and a remarkably low stand-by-drain underline the value System Power 10 650W offers even at entry-level.
VERY QUIET OPERATION
High-quality fan for low noise
System Power 10 650W is equipped with a temperature-controlled 120mm quality fan. It provides the low noise operation that be quiet! is famous for, offering remarkable quietness at this price-level.
HIGH PERFORMANCE FOR YOUR SYSTEM
Proven reliability for CPU and GPU
System Power 10 650W provides stable and dependable power for CPU and GPU. This ensures a steady and reliable operation even when your PC meets an unexpectedly heavy load.
80 PLUS® BRONZE CERTIFICATION
Efficient operation
The 80 PLUS Bronze certification of System Power 10 650W with an efficiency rating of up to 88.5% is convincing evidence of this PSU’s power saving operation.
STRONG 12V RAIL
For a stable PCIe graphics support
System Power 10 650W provides enough power for demanding graphics cards. Safety protections defend against overcurrents, over- and undervoltages, overtemperature, short circuits and overloads, thus keeping your valuable components safe.
Pdf File Link : https://objects.icecat.biz/objects/mmo_102192668_1666730081_6669_28954.pdf
| Total power | 650 W |
|---|---|
| Screws included | Yes |
| Sustainability certificates | CCC, CE, ENERGY STAR, ErP, Federal Communications Commission (FCC), RoHS, WEEE |
| Motherboard power connector | 20+4 pin ATX |
| Manual | Yes |
| Operating temperature (T-T) | 0 – 40 °C |
| 80 PLUS certification | 80 PLUS Bronze |
| Width | 140 mm |
| Product colour | Black |
| Manual languages | German, English, Spanish, French, Polish, Russian |
| Purpose | PC |
| Warranty period | 5 year(s) |
| Noise level (silent mode, <30%) | 8.9 dB |
| Depth | 86 mm |
| Storage temperature (T-T) | -20 – 70 °C |
| Cooling type | Active |
| AC input voltage | 200 – 240 V |
| Motherboard power cable length | 55 cm |
| Power supply unit (PSU) form factor | ATX |
| Operating relative humidity (H-H) | 0 – 90% |
| Number of SATA power connectors | 5 |
| AC input frequency | 50 Hz |
| Noise level (quiet mode, 50%) | 11.2 dB |
| Package width | 195 mm |
| Fan diameter | 12 cm |
| Height | 150 mm |
| Input current | 5 A |
| Package depth | 268 mm |
| Weight | 1.86 kg |
| Storage relative humidity (H-H) | 0 – 95% |
| Number of fans | 1 fan(s) |
| Number of PATA power connectors | 1 |
| ATX version | 2.52 |
| Noise level (full-load mode, 100%) | 30.7 dB |
| EPS version | 2.92 |
| Power factor | 0.95 |
| SATA power cable length | 450,550,570,670,690,790 mm |
| Package height | 97 mm |
| Fan speed | 0 – 2100 RPM |
| Peripheral (Molex) power connectors (4-pin) | 1 |
| Power Factor Correction (PFC) type | Active |
| Package weight | 2.3 kg |
| Noise level | 30.7 dB |
| On/off switch | Yes |
| Combined power (+3.3V) | 120 W |
| Bearing technology | Sleeve |
| Peripheral (Molex) power cable length | 790 mm |
| PCI Express power connectors (6+2 pin) | 2 |
| Mean time between failures (MTBF) | 100000 h |
| Certification | CB, TÜV, cRUus, cTUVus, RCM (Australia), BSMI, CU (Russia) |
| PCI Express power cable length | 50 cm |
| Combined power (+5V) | 120 W |
| Country of origin | Germany |
| CPU P4 connector (4-pin) | 1 |
| Combined power (-12V) | 3.6 W |
| CPU power connector (4+4 pin) | Yes |
| Combined power (+5Vsb) | 15 W |
| Max output current (+3.3V) | 20 A |
| CPU power cable length | 60 cm |
| ATX power connector (20+4 pin) | Yes |
| Cabling type | Non-Modular |
| Max output current (+5V) | 20 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 3 A |
| Hold time | 17 ms |
| Efficiency | 88.5% |
| Power Good signal delay range | 100 – 150 ms |
| Power protection features | Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage |
