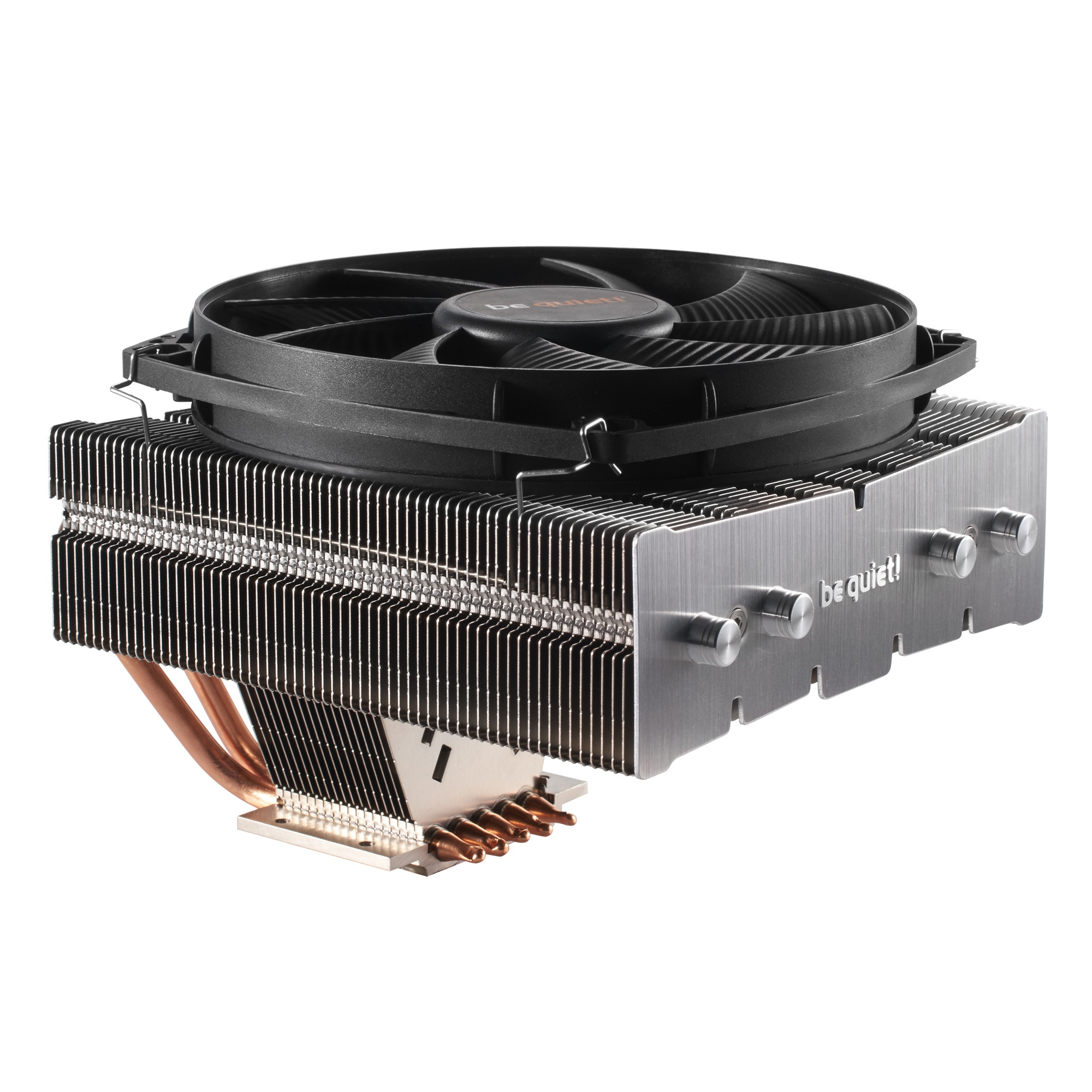

be quiet! Shadow Rock TF 2 Processor Cooler 13.5 cm Black, Copper, Silver
Stoc epuizat
be quiet! Shadow Rock TF 2. Type: Cooler, Fan diameter: 13.5 cm, Rotational speed (min): 1400 RPM, Rotational speed (max): 2000 RPM, Noise level (low speed): 11.9 dB, Noise level (high speed): 24.4 dB, Maximum airflow: 67.8 cfm, Airflow: 113.8 m³/h, Maximum air pressure: 2.1 mmH2O, Bearing type: Rifle bearing. Width: 137 mm, Depth: 165 mm, Height: 112 mm. Product colour: Black, Copper, Silver
264,63 lei (320,20 lei cu TVA)
Stoc epuizat
Compara SHADOW ROCK TF 2
Compact Cooling, Significantly Quiet
Shadow Rock TF 2 is the perfect cooler for PC systems with restricted space. It offers the best mix of performance and price in the premium compact CPU cooler segment.
HIGH-PERFORMANCE HEATPIPES
Offering the system an impressive cooling performance
Shadow Rock TF 2 is equipped with five 6mm heat pipes. They carry the heat straight to optimal locations on the cooling fins and provide the system with a remarkable compact cooling capacity of 160W TDP.
DIRECT CONNECTION OF BASE PLATE AND FINS
For highly effective cooling power
An ingenious cooling concept: The baseplate and the cooling fins of Shadow Rock TF 2 are directly connected. This ensures fast heat transfer and optimum cooling efficiency.
EXTREMELY SILENCE-OPTIMIZED OPERATION
Even at 100% fan speed the overall noise is merely 24.4dB(A)
Silent operation typical for be quiet! products is achieved by the silence-optimized 135mm be quiet! fan. Delivering the best balance between cooling performance and quietness its smooth operation is thanks to the nine airflow-optimized fan blades and durable rifle-bearing technology.
SMALL, DIAGONALLY ARRANGED FINS
Produce the perfect airflow
The small diagonal fins on the back of the cooler direct the airflow to guarantee efficient cooling for the CPU as well as components around the Intel® or AMD™ socket.
SPACE-SAVING TOP-FLOW DESIGN
Benefit from this highly functional concept
The top-flow design is perfect for anyone who has to cope with limited space restrictions when building a system. Shadow Rock TF 2 more than solves this problem.
Pdf File Link : https://objects.icecat.biz/objects/mmo_37033298_1592403271_9098_13903.pdf
| Suitable location | Processor |
|---|---|
| Power supply | 1.32 W |
| Harmonized System (HS) code | 84733080 |
| Product colour | Black, Copper, Silver |
| Width | 137 mm |
| Screws included | Yes |
| Heatsink dimensions (W x D x H) | 165 x 137 x 87 mm |
| Depth | 165 mm |
| Material | Aluminium, Copper |
| Rated voltage | 12 V |
| Type | Cooler |
| Thermal pad included | Yes |
| Height | 112 mm |
| Number of fans | 1 fan(s) |
| Rated current | 0.11 A |
| Fan diameter | 13.5 cm |
| Supported processor sockets | LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), LGA 1200 (Socket H5), LGA 1366 (Socket B), LGA 2011 (Socket R), LGA 2011-v3 (Socket R), LGA 2066, LGA 775 (Socket T), Socket AM2, Socket AM2+, Socket AM3, Socket AM3+, Socket AM4, Socket FM1, Socket FM2, Socket FM2+ |
| Weight | 680 g |
| Number of fan blades | 9 |
| Rotational speed (min) | 1400 RPM |
| Number of fins | 57 |
| Fan dimensions (W x D x H) | 135 x 135 x 22 mm |
| Heat pipes diameter | 6 mm |
| Fins material | Aluminium |
| Rotational speed (max) | 2000 RPM |
| Cable length | 0.2 m |
| Number of heat pipes | 5 |
| Noise level (low speed) | 11.9 dB |
| Noise level (high speed) | 24.4 dB |
| Package width | 178 mm |
| Fan connector | 4-pin |
| Maximum airflow | 67.8 cfm |
| Package depth | 203 mm |
| Package height | 130 mm |
| Airflow | 113.8 m³/h |
| Package weight | 1.09 kg |
| Maximum air pressure | 2.1 mmH2O |
| Pulse-width modulation (PWM) support | Yes |
| Bearing type | Rifle bearing |
