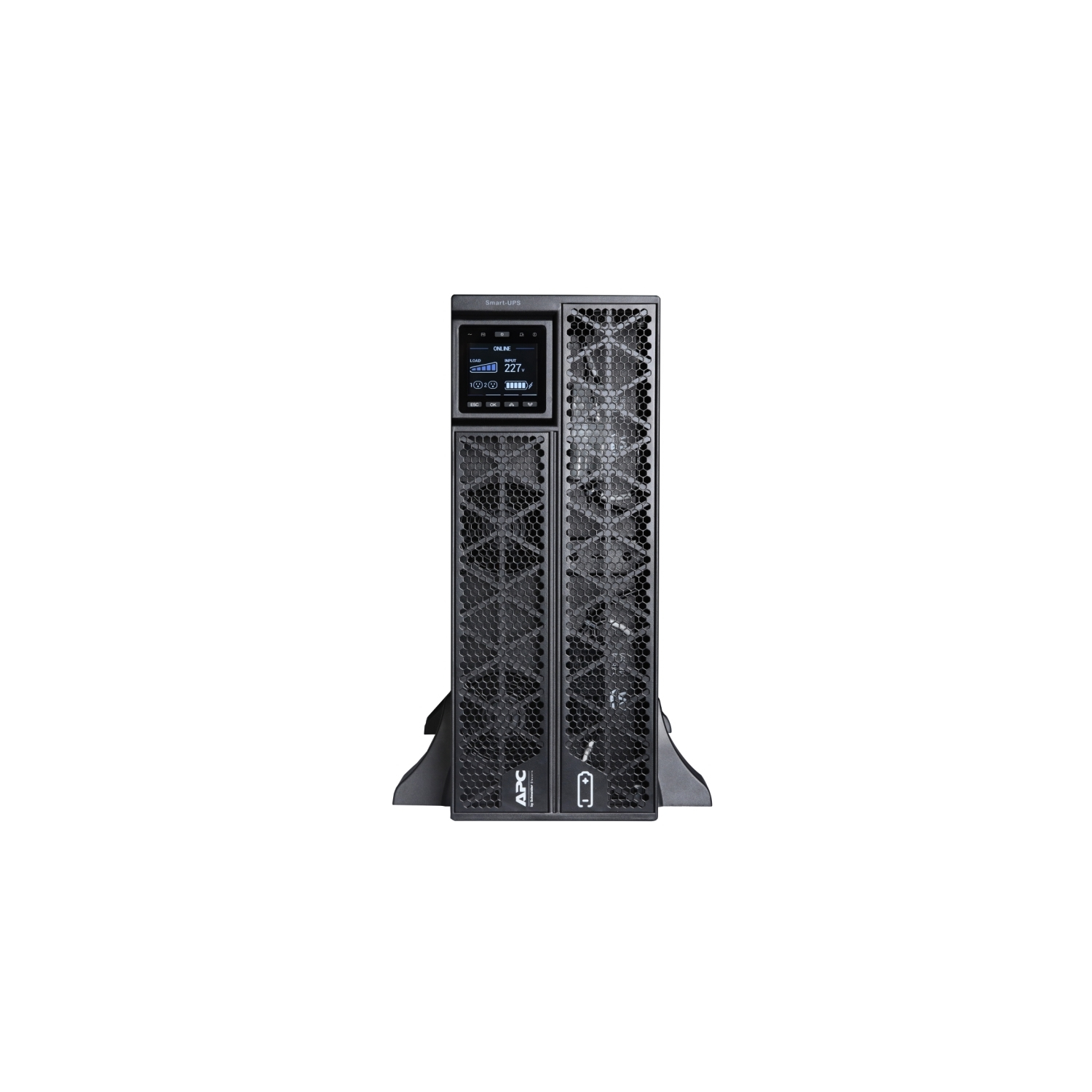

APC SRTG5KXLI uninterruptible power supply (UPS) Double-conversion (Online) 5 kVA 5000 W 3 AC outlet(s)
Stoc epuizat
APC SRTG5KXLI. UPS topology: Double-conversion (Online), Output power capacity: 5 kVA, Output power: 5000 W. AC outlet types: C13 coupler, C19 coupler, AC outlets quantity: 3 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA), Battery voltage: 96 V, Battery life (max): 5 year(s). Form factor: Compact, Product colour: Black, Rack capacity: 4U. Width: 440 mm, Depth: 620 mm, Height: 178 mm
15.743,45 lei (19.049,58 lei cu TVA)
Stoc epuizat
ComparaAutomatic restart of loads after UPS shutdown
Automatically starts up the connected equipment upon the return of utility power.
Automatic self-test
Periodic battery self-test ensures early detection of a battery that needs to be replaced.
Battery failure notification
Provides early-warning fault analysis on batteries enabling timely preventive maintenance
ECO Mode
Operating mode that by-passes unused electrical components in good power conditions to achieve high operating efficiency without sacrificing protection
LCD Status Display
Provides key UPS status at a glance. Multiple status indicators with load and battery bar graphs.
Cold-start capable
Provides temporary battery power when the utility power is out.
Safety-agency approved
Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.
Resettable circuit breaker
Easy recovery from overloads; no need to replace a fuse. (Not available on Wall Tap SKUs)
Power conditioning
Protects connected loads from surges, spikes, lightning, and other power disturbances.
Input Power Factor Correction
Minimizes installation costs by enabling the use of smaller generators and cabling.
Generator compatible
Ensures clean, uninterrupted power to protected equipment when generator power is used.
Frequency and voltage regulation
Gives higher application availability by correcting poor frequency and voltage conditions without using the battery.
SmartSlot
Customize UPS capabilities with management cards.
Network manageable
Most models provide remote power management options of the UPS over the network. Many do not have NMC embedded.
Serial connectivity
Provides management of the UPS via a serial port.
InfraStruXure Manager Compatible
Enables centralized management via the APC InfraStruXure Manager.
LED status indicators
Quickly understand unit and power status with visual indicators.
Pdf File Link : https://objects.icecat.biz/objects/mmo_91283095_1661246349_0804_9620.pdf
| UPS topology | Double-conversion (Online) |
|---|---|
| Width | 440 mm |
| Operating temperature (T-T) | 0 – 40 °C |
| Form factor | Compact |
| Battery technology | Sealed Lead Acid (VRLA) |
| AC outlet types | C13 coupler, C19 coupler |
| Depth | 620 mm |
| Storage temperature (T-T) | -15 – 45 °C |
| Rack capacity | 4U |
| Output power capacity | 5 kVA |
| AC outlets quantity | 3 AC outlet(s) |
| Battery voltage | 96 V |
| Output power | 5000 W |
| Battery life (max) | 5 year(s) |
| Height | 178 mm |
| USB port | Yes |
| Product colour | Black |
| Operating relative humidity (H-H) | 0 – 95% |
| Weight | 51.9 kg |
| Serial interface | Yes |
| Waveform | Sine |
| Storage relative humidity (H-H) | 0 – 95% |
| Battery recharge time | 4 h |
| Display type | LCD |
| Package width | 590 mm |
| Hot-swap battery | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| LED indicators | Yes |
| Operating altitude | 0 – 2011 m |
| Input operation voltage (min) | 100 V |
| Input operation voltage (max) | 285 V |
| International Protection (IP) code | IP20 |
| Automatic battery test | Yes |
| Emergency Power Off (EPO) connector | Yes |
| Non-operating altitude | 0 – 15240 m |
| Package depth | 790 mm |
| SmartSlot | Yes |
| Certification | CE, EN/IEC 62040-1 |
| Cold start | Yes |
| Package height | 275 mm |
| Input frequency | 40/70 Hz |
| Package weight | 59 kg |
| Output operation voltage (min) | 220 V |
| Output operation voltage (max) | 240 V |
| Output frequency | 50/60 Hz |
| Surge energy rating | 600 J |
| Crest factor | 3:1 |
| ECO mode | Yes |
| Emergency Power Off (EPO) | Yes |
| Output voltage Total Harmonic Distortion (THD) | 2% |
| Noise level | 55 dB |
| Audible alarm(s) | Yes |
| Audible alarm modes | Alarm when on battery, Low battery alarm, Overload alarm |
