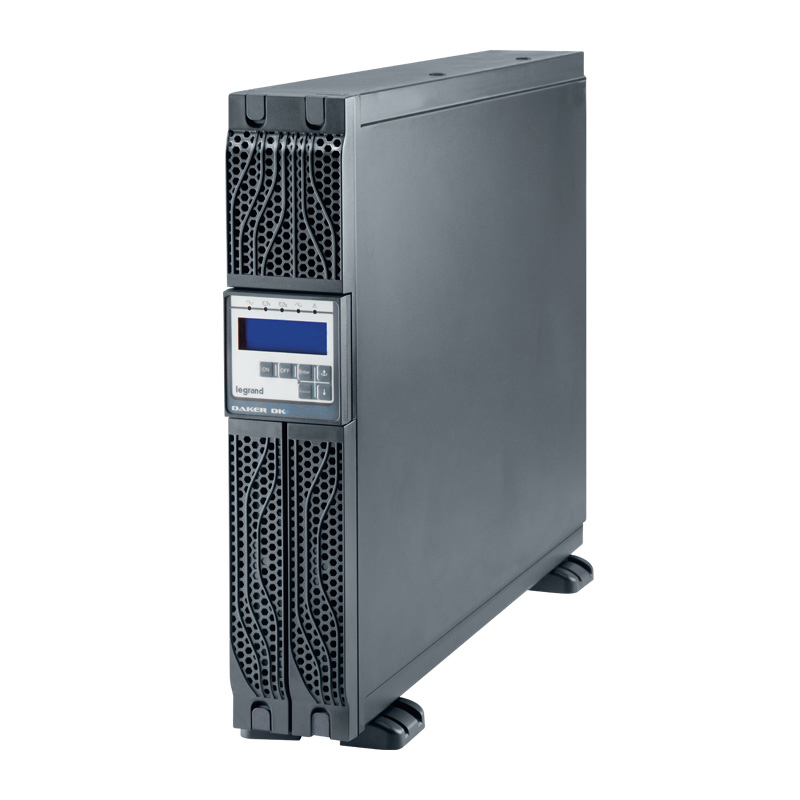

Legrand Daker DK+ UPS DAKER DK PLUS 2000VA uninterruptible power supply (UPS) Double-conversion (Online) 2 kVA 1800 W 6 AC outlet(s)
Stoc epuizat
Legrand Daker DK+ UPS DAKER DK PLUS 2000VA. UPS topology: Double-conversion (Online), Output power capacity: 2 kVA, Output power: 1800 W. AC outlet types: C13 coupler, Power plug: C14 coupler, AC outlets quantity: 6 AC outlet(s). Battery capacity: 7.2 Ah, Battery voltage: 12 V, Battery recharge time: 4 h. Form factor: Rackmount, Product colour: Black, Rack capacity: 2U. Width: 88 mm, Depth: 600 mm, Height: 440 mm
2.796,49 lei (3.383,75 lei cu TVA)
Stoc epuizat
ComparaDaker DK UPS Plus is a single phase uninterruptible power supply with high frequency PWM technology, Double Conversion OnLine.
It delivers a rated power of 1000-2000-3000-5000-6000-10000VA, equipped with valve-regulated, hermetically-sealed accumulator batteries, contained in a specific compartment inside the UPS or in one or more external cabinets.
With the reversible screen, the Daker DK Plus UPS can be used in both tower and 19″ rack configuration.
Pdf File Link : https://objects.icecat.biz/objects/mmo_51317434_1658239818_5262_15038.pdf
| UPS topology | Double-conversion (Online) |
|---|---|
| Battery capacity | 7.2 Ah |
| AC outlet types | C13 coupler |
| Operating temperature (T-T) | 0 – 40 °C |
| Pallet net height | 151.5 cm |
| Width | 88 mm |
| Form factor | Rackmount |
| Products per pallet | 12 pc(s) |
| Power plug | C14 coupler |
| Rack capacity | 2U |
| Harmonized System (HS) code | 85078000 |
| Operating relative humidity (H-H) | 0 – 95% |
| Depth | 600 mm |
| Output power capacity | 2 kVA |
| Battery voltage | 12 V |
| Pallet net length | 100 cm |
| Master (outer) case width | 560 mm |
| Pallet net width | 120 cm |
| Height | 440 mm |
| Number of batteries supported | 6 |
| Product colour | Black |
| AC outlets quantity | 6 AC outlet(s) |
| Output power | 1800 W |
| Master (outer) case length | 710 mm |
| Display type | LCD |
| Pallet net weight | 312 kg |
| Waveform | Sine |
| USB port | Yes |
| Weight | 29.5 kg |
| Battery recharge time | 4 h |
| Package width | 88 mm |
| Serial interface | Yes |
| Input operation voltage (min) | 176 V |
| Master (outer) case height | 230 mm |
| LED indicators | Status |
| Master (outer) case gross weight | 26 kg |
| Package depth | 23.2 mm |
| International Protection (IP) code | IP20 |
| Serial interface type | RS-232 |
| Input operation voltage (max) | 280 V |
| Products per master (outer) case | 1 pc(s) |
| Input frequency | 47/63 Hz |
| Certification | EN 62040-1, EN 62040-2, EN 62040-3 |
| Package height | 440 mm |
| Output operation voltage (min) | 228 V |
| Package weight | 24.7 kg |
| Output operation voltage (max) | 232 V |
| Output frequency | 50/60 Hz |
| Output voltage regulation | 1% |
| Surge energy rating | 1530 J |
| Number of input phases | 1 |
| Number of output phases | 1 |
| Efficiency | 91% |
| Efficiency (ECO mode) | 97% |
| Input power factor | 0.99 |
| Output power factor | 0.9 |
| Crest factor | 3:1 |
| Emergency Power Off (EPO) | Yes |
| Output voltage Total Harmonic Distortion (THD) | 3% |
| Input current Total Harmonic Distortion (THD) | 3% |
| Noise level | 50 dB |
| Management protocols | Network management,Simple Network Management Protocol (SNMP) |
| Potential-free output | No |
| Auto shut-off | No |
| Power source type | AC |
