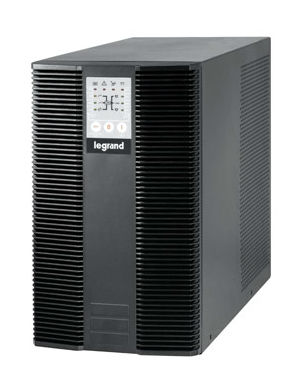

Legrand Keor LP 3kVA uninterruptible power supply (UPS) Double-conversion (Online) 2700 W 6 AC outlet(s)
Stoc epuizat
Legrand Keor LP 3kVA. UPS topology: Double-conversion (Online), Output power capacity: 3 kVA, Output power: 2700 W. AC outlet types: C13 coupler, Power plug: C20 coupler, AC outlets quantity: 6 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA), Battery capacity: 7 Ah, Battery voltage: 72 V. Product colour: Black, International Protection (IP) code: IP21, Certification: CE, EN 62040-1, EN 62040-2. Width: 322 mm, Depth: 151 mm, Height: 444 mm
2.606,48 lei (3.153,84 lei cu TVA)
Stoc epuizat
ComparaOn‑Line double conversion UPS for low and medium power applications
The distributed power, from 1000 VA to 3000 VA, provides high level electrical protection for medium power devices.
The UPS comprise a single card with incorporates power, control logic, control and diagnostics.
All models have a backup time that can be extended by adding battery cabinets.
All versions have a slot for connecting SNMP communication interfaces.
– Conventional single-phase UPS systems, available in 3 versions depending on the power
– Power from 1 to 3 kVA
– VFI-SS-111 on-line double conversion
– RS232 communication port
– LAN / SNMP connectivity
– Uptime can be extended with additional battery cabinets
– Compact design and low footprint
Pdf File Link : https://objects.icecat.biz/objects/mmo_34535651_1491577881_1595_12775.pdf
| UPS topology | Double-conversion (Online) |
|---|---|
| Width | 322 mm |
| Operating temperature (T-T) | 0 – 40 °C |
| Product colour | Black |
| Battery technology | Sealed Lead Acid (VRLA) |
| AC outlet types | C13 coupler |
| Battery capacity | 7 Ah |
| Output power capacity | 3 kVA |
| Power plug | C20 coupler |
| LED indicators | Yes |
| Operating relative humidity (H-H) | 20 – 80% |
| Depth | 151 mm |
| International Protection (IP) code | IP21 |
| Height | 444 mm |
| Output power | 2700 W |
| Battery voltage | 72 V |
| AC outlets quantity | 6 AC outlet(s) |
| Weight | 23 kg |
| Serial interface | Yes |
| Number of batteries supported | 6 |
| Certification | CE, EN 62040-1, EN 62040-2 |
| Waveform | Sine |
| Serial interface type | RS-232 |
| Input operation voltage (min) | 160 V |
| Typical backup time at half load | 7 min |
| Input operation voltage (max) | 300 V |
| RS-232 ports | 1 |
| Battery recharge time | 3 h |
| Input frequency | 45/65 Hz |
| Automatic battery test | Yes |
| Emergency Power Off (EPO) connector | Yes |
| Output operation voltage (min) | 230 V |
| Output operation voltage (max) | 230 V |
| Output voltage regulation | 1% |
| Number of input phases | 1 |
| Efficiency | 90% |
| Power factor | 0.98 |
| Input power factor | 0.99 |
| Crest factor | 3:1 |
| Emergency Power Off (EPO) | Yes |
| Output voltage Total Harmonic Distortion (THD) | 3% |
| Noise level | 50 dB |
| Audible alarm(s) | Yes |
| Web-based management | Yes |
| Management protocols | SNMP |
| Audible alarm modes | Alarm when on battery, Fault, Low battery alarm, Overload alarm |
