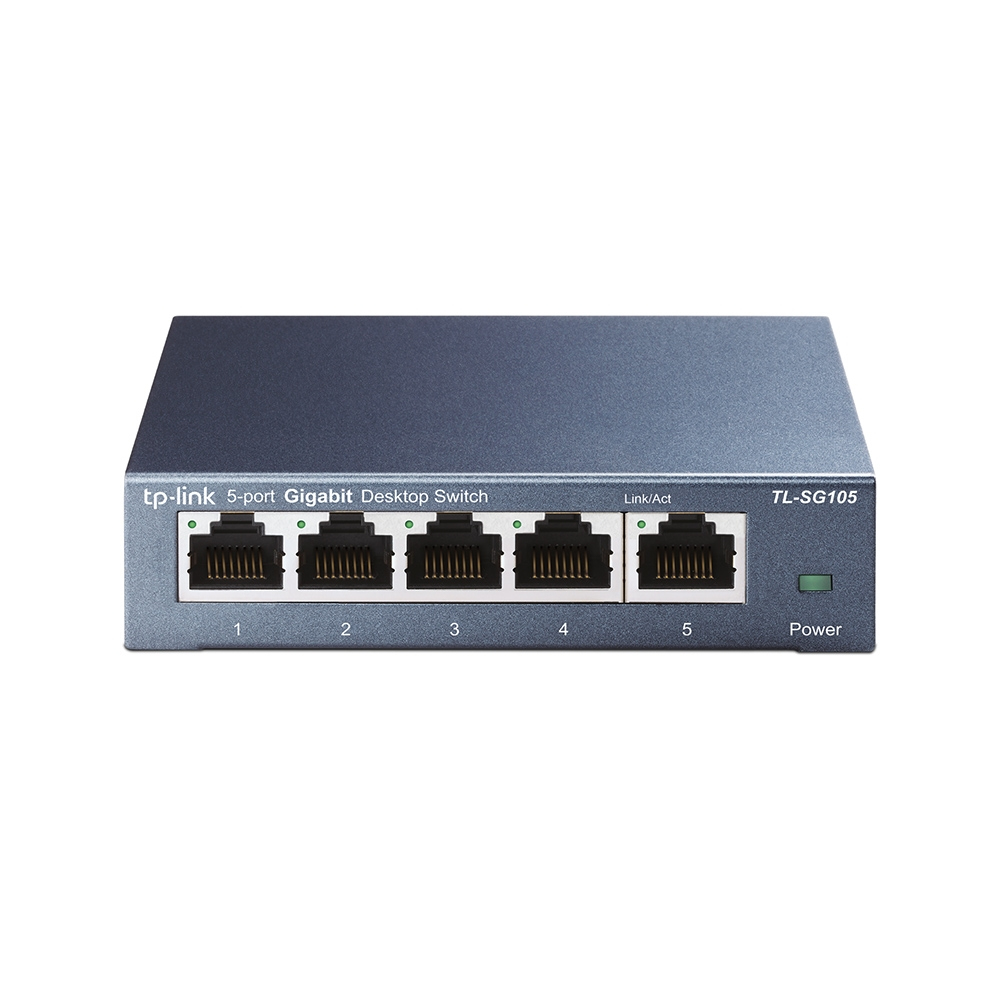

TP-Link TL-SG105 network switch Unmanaged L2 Gigabit Ethernet (10/100/1000) Black
23 în stoc
TP-Link TL-SG105. Switch type: Unmanaged, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 5. Full duplex. MAC address table: 2048 entries, Switching capacity: 10 Gbit/s. Networking standards: IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x. Power connector: DC-in jack. Wall mountable
81,18 lei (98,23 lei cu TVA)
23 în stoc
ComparaWhat This Product Does
The TP-Link 5-Port 10/100/1000Mbps Desktop Switch provides you an easy way to make the transition to Gigabit Ethernet. Increase the speed of your network server and backbone connections, or make Gigabit to the desktop a reality. Plug and Play design, with no configuration required, makes the product easy to use. Moreover, TL-SG105S adopts lower power consumption design. With the innovative energy-efficient technology, the TL-SG105S can save power consumption, making it an eco-friendly solution for your home or office network.
Gigabit Switch
Featured with 5 10/100/1000Mbps ports, TL-SG105S greatly expands your network capacity, enabling instant large files transferring. So, power users in the home, office, workgroup, or creative production environment can now move large, bandwidth-intensive files faster. Transfer graphics, CGI, CAD, or multimedia files across the network instantly.
Go Green With Your Ethernet
You now have the choice to go green when upgrading to a gigabit network! This new generation TL-SG105S 5-Port 10/100/1000Mbps Desktop Switch features the latest innovative energy-efficient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status and cable length to limit the carbon footprint of your network.
Traffic Optimization
802.1p and DSCP QoS enable smooth latency-sensitive traffic such as voice and video, and IGMP Snooping optimizes the Multicast data stream.
Easy to use
The auto features of this gigabit switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDIX eliminate the need for crossover cables. Auto-negotiation on each port senses the link speed of a network device (either 10, 100, or 1000 Mbps) and intelligently adjusts for compatibility and optimal performance. Moreover, fanless design ensures quiet operation.
Pdf File Link : https://objects.icecat.biz/objects/mmo_79344153_1591035073_4811_19031.pdf
| Switch type | Unmanaged |
|---|---|
| IGMP snooping | Yes |
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Networking standards | IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x |
| Harmonized System (HS) code | 85176990 |
| Multicast support | Yes |
| Switching capacity | 10 Gbit/s |
| Rack mounting | No |
| Power over Ethernet (PoE) | No |
| Operating temperature (T-T) | 0 – 40 °C |
| Width | 100 mm |
| Cables included | AC |
| Power supply included | Yes |
| Forwarding rate | 7.4 Mpps |
| Storage temperature (T-T) | -40 – 70 °C |
| Switch layer | L2 |
| AC input voltage | 220 V |
| Depth | 98 mm |
| Product colour | Black |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| User guide | Yes |
| 10G support | No |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Package type | Box |
| Quality of Service (QoS) support | Yes |
| Height | 25 mm |
| Operating relative humidity (H-H) | 10 – 90% |
| MAC address table | 2048 entries |
| Housing material | Steel |
| Gigabit Ethernet (copper) ports quantity | 5 |
| AC input frequency | 50 Hz |
| Input current | 0.6 A |
| Storage relative humidity (H-H) | 5 – 90% |
| Cable types supported | Cat3, Cat4, Cat5, Cat5e |
| Power connector | DC-in jack |
| LED indicators | Yes |
| Store-and-forward | Yes |
| Heat dissipation | 7.83 BTU/h |
| Wall mountable | Yes |
| Full duplex | Yes |
| Jumbo frames support | Yes |
| Power consumption (max) | 2.3 W |
| Certification | CE, FCC, RoHS |
| Jumbo frames | 16000 |
| Flow control support | Yes |
| Packet buffer memory | 1 MB |
| Auto MDI/MDI-X | Yes |
| Auto-negotiation | Yes |
| MAC address auto-learning supported | Yes |
| MAC address auto-aging supported | Yes |
