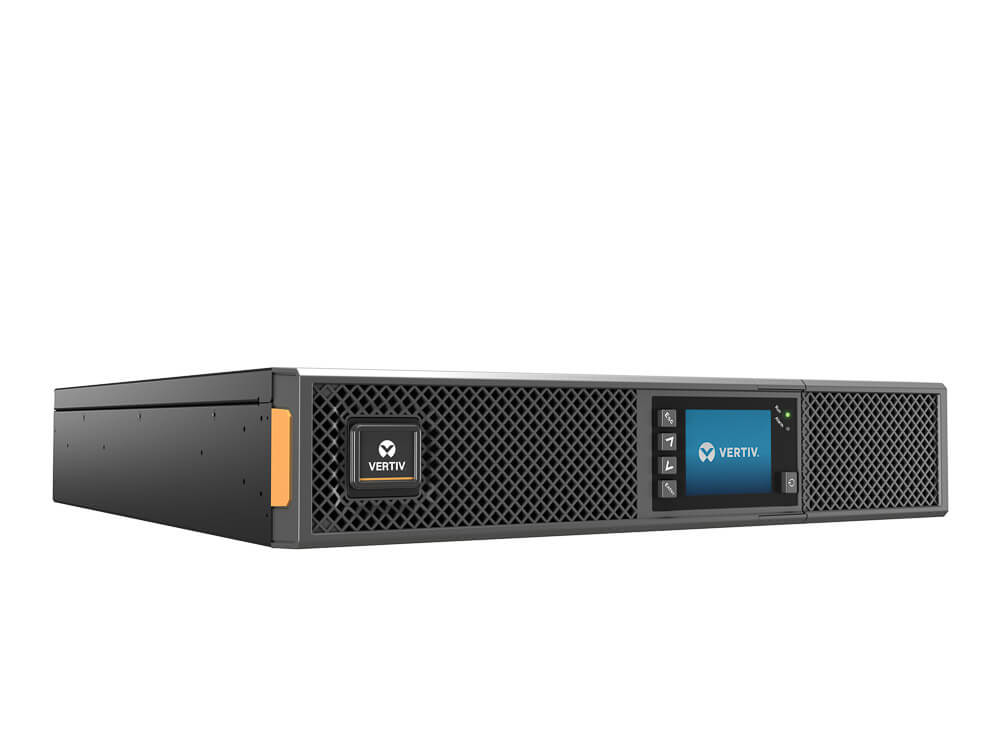

Vertiv Liebert GXT5 uninterruptible power supply (UPS) Double-conversion (Online) 1 kVA 1000 W 8 AC outlet(s)
Stoc epuizat
Vertiv Liebert GXT5. UPS topology: Double-conversion (Online), Output power capacity: 1 kVA, Output power: 1000 W. AC outlet types: C13 coupler, C19 coupler, AC outlets quantity: 8 AC outlet(s), Serial interface type: RS-232, RS-485. Battery technology: Sealed Lead Acid (VRLA), Battery capacity: 9 VAh, Battery voltage: 12 V. Form factor: Rackmount/Tower, Product colour: Black, Display type: LCD. Width: 430 mm, Depth: 630 mm, Height: 217 mm
4.158,03 lei (5.031,22 lei cu TVA)
Stoc epuizat
ComparaThe Vertiv Liebert GXT5 UPS 1000VA/1000W, is a 2U UPS solution for ensuring the health and availability of IT infrastructure. With online, double conversion technology, the UPS protects critical equipment against outages and every type of power disturbance without drawing on battery power, extending battery life and minimizing replacements. This can support a wide range of power environment including 200/208/220/230/240V user configurable AC power and has scalable runtime options with matching external battery cabinets to offer extra time during an outage to support critical equipment and activity. It includes hot-swappable batteries and all hardware for installing it as a tower or in an equipment rack. This single-phase UPS is ENERGY STAR 2.0 certified and offers leading normal mode power efficiency and Eco-mode for ultimate efficiency levels. It has a two-year factory warranty. It offers premium power protection for critical infrastructure in centralized and edge applications.
Pdf File Link : https://objects.icecat.biz/objects/mmo_70250447_1564054217_525_2538.pdf
| UPS topology | Double-conversion (Online) |
|---|---|
| Battery technology | Sealed Lead Acid (VRLA) |
| AC outlet types | C13 coupler, C19 coupler |
| Operating temperature (T-T) | 0 – 40 °C |
| Battery type | VRLA |
| Harmonized System (HS) code | 85078000 |
| Sustainability certificates | RoHS, ENERGY STAR |
| Width | 430 mm |
| Form factor | Rackmount/Tower |
| AC outlets quantity | 8 AC outlet(s) |
| Output connections | IEC320 C13 |
| Storage temperature (T-T) | -15 – 40 °C |
| Depth | 630 mm |
| Battery capacity | 9 VAh |
| Output power capacity | 1 kVA |
| Product colour | Black |
| Display type | LCD |
| Battery voltage | 12 V |
| Output power | 1000 W |
| Height | 217 mm |
| USB port | Yes |
| Input connection type | C14 |
| Operating relative humidity (H-H) | 0 – 95% |
| International Protection (IP) code | IP20 |
| Nominal output voltage | 230 V |
| Serial interface type | RS-232, RS-485 |
| Storage relative humidity (H-H) | 0 – 95% |
| Weight | 21 kg |
| Typical backup time at full load | 6 min |
| Waveform | Pure sine |
| Package width | 517 mm |
| Nominal input voltage | 230 V |
| Serial ports quantity | 1 |
| Operating altitude | 0 – 3000 m |
| Typical backup time at half load | 15 min |
| Input operation voltage (min) | 115 V |
| Safety | IEC62040-1:2008, GS; UL1778, c-UL |
| Package depth | 262 mm |
| Non-operating relative humidity (non-condensing) | 0 – 95% |
| Battery recharge time | 3 h |
| Certification | IEC/EN/AS 62040-2 2nd Ed (Cat 2 – 6); |
| Emergency Power Off (EPO) connector | Yes |
| Input operation voltage (max) | 288 V |
| Hot-swap battery | Yes |
| Overload protection | Yes |
| Input frequency | 40 – 70 Hz |
| Package height | 617 mm |
| Bypass | Yes |
| Package weight | 21.4 kg |
| Output operation voltage (max) | 240 V |
| Output frequency | 50/60 Hz |
| Output voltage regulation | 3% |
| Number of input phases | 1 |
| Number of output phases | 1 |
| Efficiency | 95% |
| Efficiency (On-line mode) | 95% |
| Efficiency (ECO mode) | 98% |
| Input power factor | 0.99 |
| Emergency Power Off (EPO) | Yes |
| Noise level | 58 dB |
| Power protection features | Overload |
| Audible alarm(s) | Yes |
